Posted on

Three steps forward, two back

Back again to the front door. We’re trying to get the opening correct for the door we restored a few years ago. The current door (circa 70s, 80s) doesn’t align vertically with the door above it, so our aim is to shift the door a bit to the left so it does – we believe the original door was centered. The new door is 3″ wider than the current door but we will still hope to have side windows to let in a bit more light.

We decided to enlist the help of the talented Josh Finn to build us a new door frame and to install the door. Josh’s initial sketch (below) shows that with the current door opening the side windows would only be 2.5″ wide which isn’t very much so I’ve been working on making the door way gap a little larger. As it turned out the pressure treated wood I added to either side of the newly extended wall wasn’t square – not sure how that happened, user error or maybe the mortar pushed it out, anyway it was bugging me so I ripped both of them off, which in effect undid a couple of days work – bummer but I want to get it right.

I then got back to my least favourite task of chiseling and grinding away at the wall, annoying as we had just rebuilt one side of the wall. Grinding away the lime mortar is easy as it still reasonably soft (lime mortar takes weeks to cure), but the rocks are really tough to grind down. From the pictures there doesn’t look like there are many rocks, but if you scroll to the bottom, you can see them after I sprayed the lime with water. I estimate 12 hours to finish the grinding. It’s also very messy, with stuff going everywhere and clouds of dust.

14
15
16
13

[Show slideshow]

First pass of the grinding removed 1″ – 2″ of the new wall and then I decided to remove another 1″ – 2″ but this time, not extending to the outside so the pressure treated wooden door jams aren’t visible from the outside. You can see the the laser line I’m trying to keep to in the photos below.

1
4
9

[Show slideshow]

Hopefully now, our side windows will be at least 4″ wide which I think is reasonable.

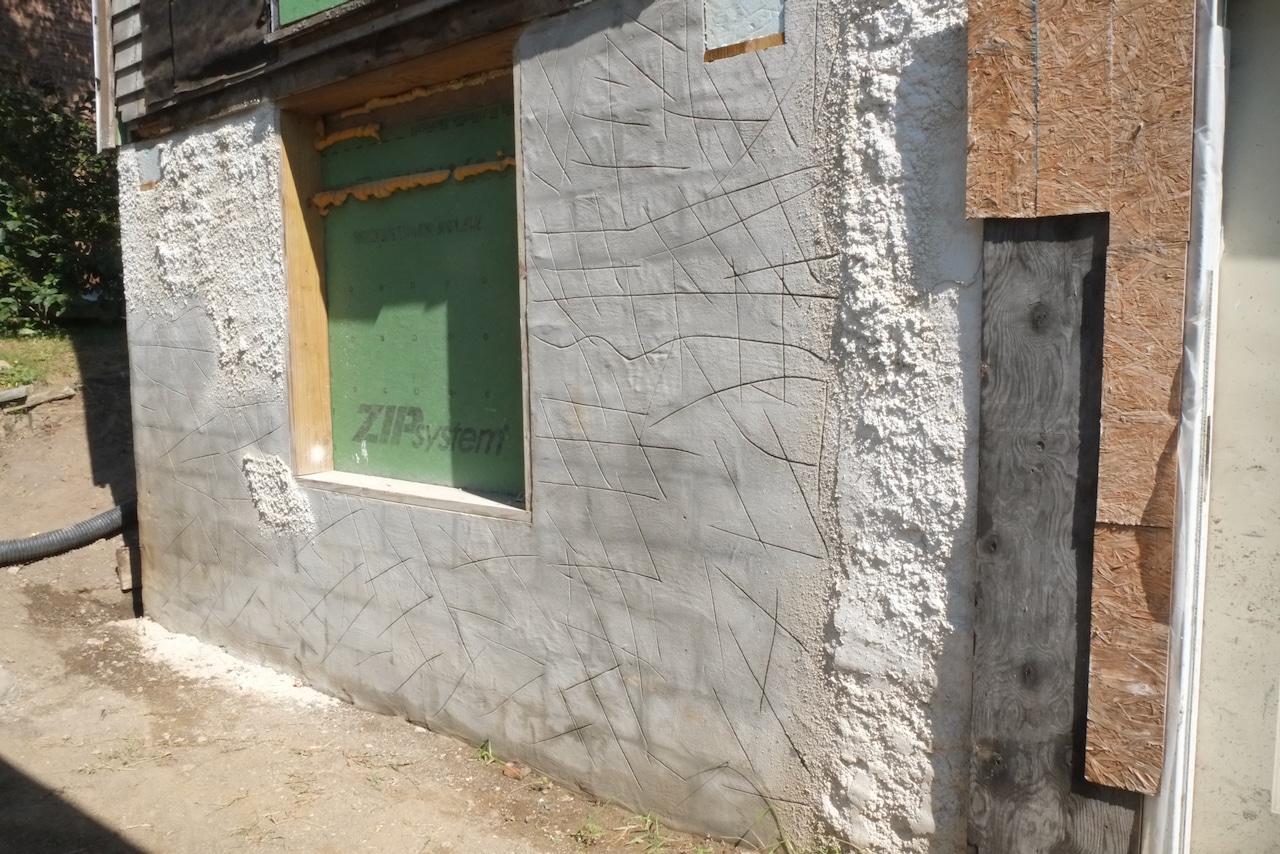

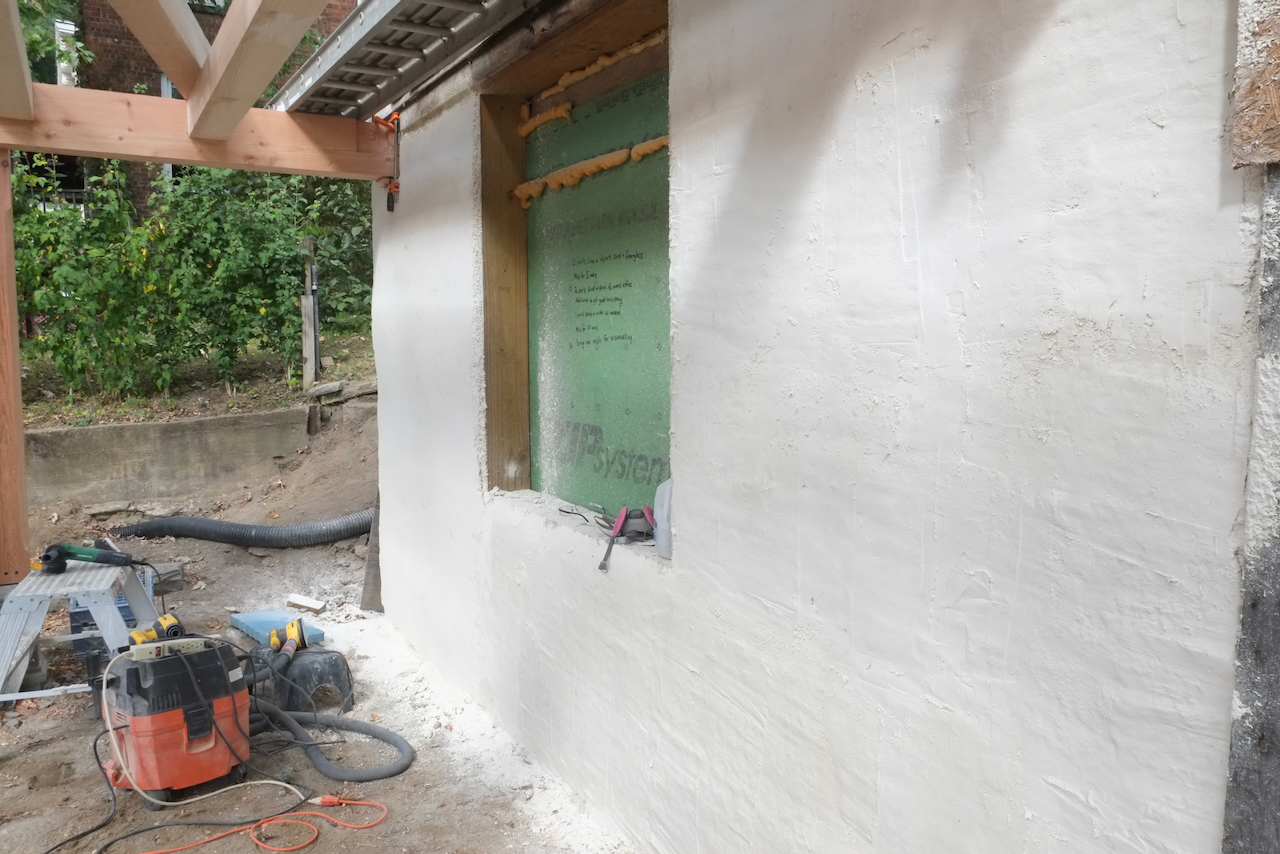

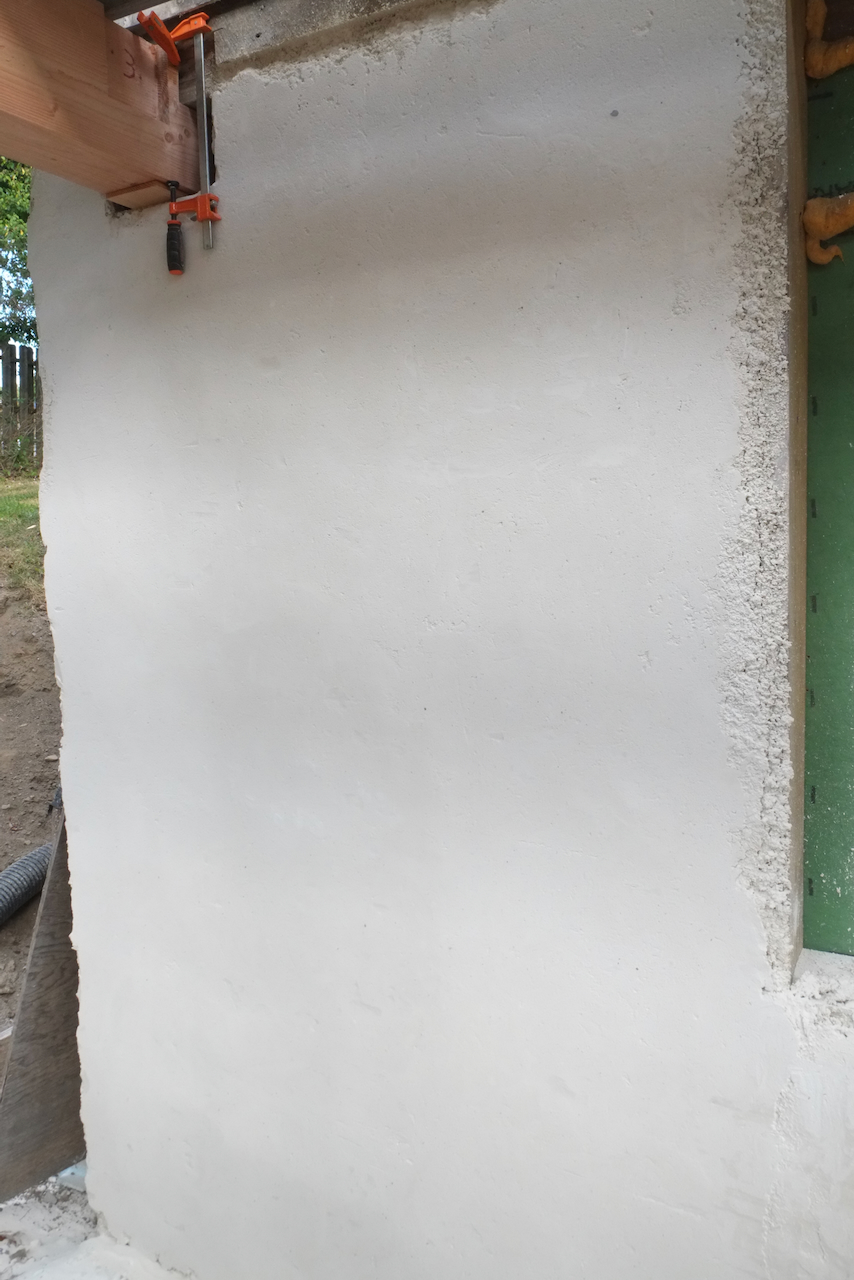

Because the ground walls aren’t perfect, we sprayed them with lime mortar and then I plan to grind the surface flat so the door jams fits snugly. Lime mortar is fast to grind away, just very messy. While we’re spraying mortar we also started to spray the few remaining untreated walls in the house. There was a bit of prep as we had to remove all the lose stuff which covered most of the surface.

Posted on

Repairing floor joists

So having just repaired the rim joist, it’s now time to replace the rotten floor joists, three to be precise. Due to rot, none of these attached to the rim joist and were just hanging mid air and two of them had huge chunks cut out of them, possibly for duct work so they were severely compromised.

1

[Show slideshow]

Like most projects on the house I wanted to do a respectful job so instead of butt jointing in a new piece and sistering on a 2×8″ (adding extra wood to strengthen a damaged beam), I thought I’d do some joint work. I’ll still add a 2×8″ but only on one side as my joint will be stronger than a butt joint. I’m not sure this joint has a name, it’s slightly similar to a scarf joint.

I probably would have done a fancier job if it wasn’t so difficult to cut, standing on a ladder is not the easiest position to cut from. For the first beam I made some templates which I attached to the beam and used a Sawzall to rough cut, finishing off with a hand saw and plane – that was hard work. I then had the idea of using a trim router and that worked out great. I did have to to do multiple passes as a trim router as the name suggests isn’t supposed to remove a lot of wood in one pass. It probably took me about 3 – 4 hours to cut a single joist like this, luckily I only have three.

4
1
8
3

[Show slideshow]

As I didn’t have any wood with similar dimensions to the joist, I laminated three pieces of old growth lumber together. I used West System epoxy so this will be a stronger than wood bond, plus I’m running 3/8″ bolts vertically through the joint as an extra safe guard. The reason the center piece is lighter is because I planed it down.

2
9

[Show slideshow]

And this is how they finally turned out and I will secure these floor joists to the rim joist with 3/16″ thick steel angle brackets. I know these aren’t the finest or strongest joints, but I think they are decent, plus the addition of another sistered 2×8″ will make every rock solid.

7
1

[Show slideshow]

This whole job, repairing wall, replacing rim and floor joists has taken me a few months – I wasn’t expecting it to take this long, but in most endeavours the first time you do something there’s a learning curve.

Posted on

Shifting Dirt

During the excavation of our basement floor and foundation drain we accumulated a large quantity of sandy soil. We’ve been pondering about what to do with the dirt for last year or two. We thought of getting a skip (dumpster), finding someone who wanted dirt (people do) and then we realised that we had the perfect spot for it at the back of our garden – don’t know why we didn’t think of this earlier.

2-1
2

[Show slideshow]

Aimee kindly took on this task and over the last 6 weeks or so has been slowly moving the soil, two small buckets at a time. It’s been a long slog, especially in the hot humid weather we’ve been having, but it’s a good work out.

3
1-1

[Show slideshow]

I didn’t start recording this until Aimee had removed about a foot of dirt from in front of the garage and I accidentley deleted the last video when we finally cleared the driveway.

1-2
2-3

[Show slideshow]

It’s nice to have reclaimed our driveway and make our property a bit more presentable and we’re also hoping to remove the dirt from the front of the house as well.

Posted on

Improving front doorway

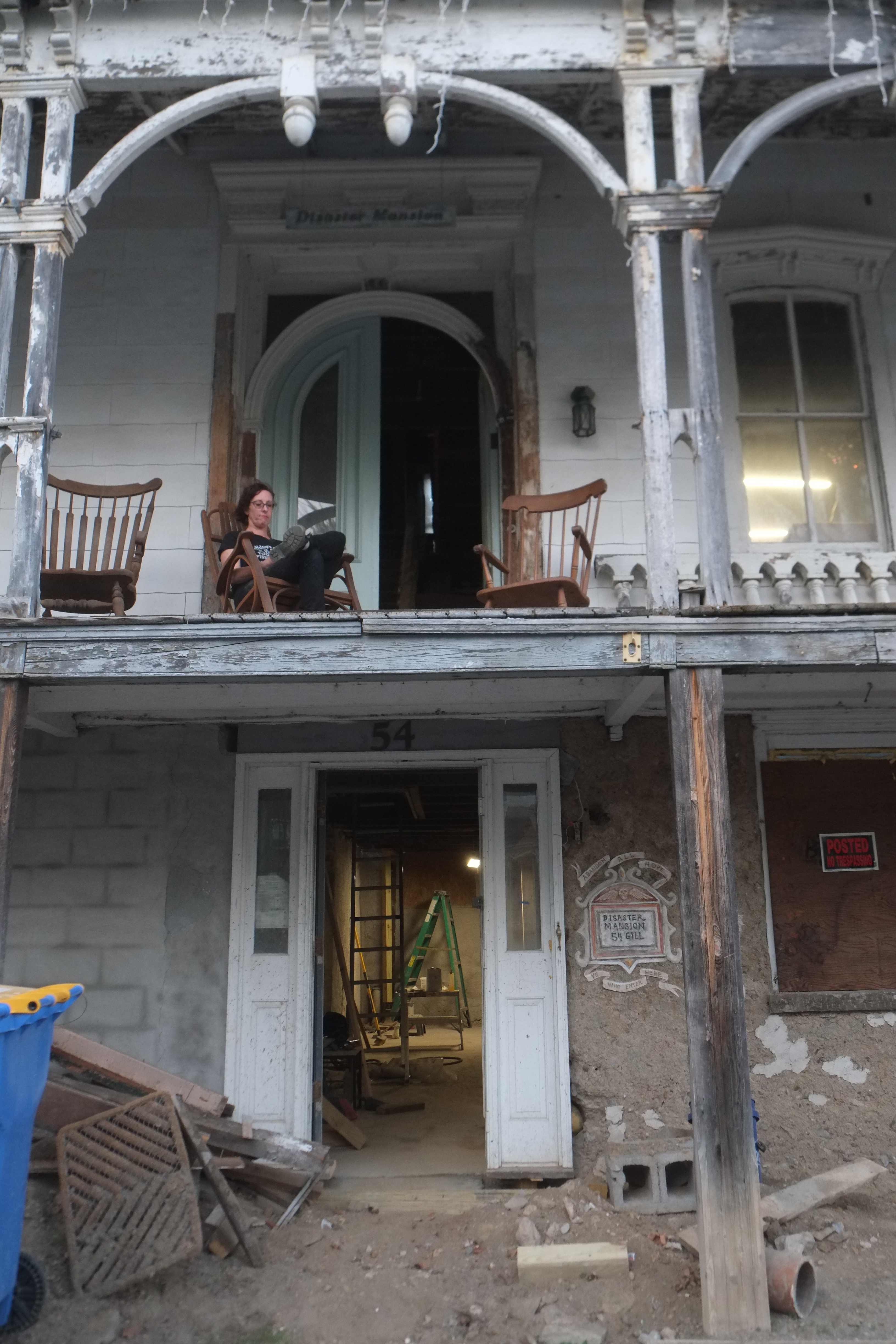

The ground floor door isn’t original, it’s pretty beat up and doesn’t align vertically with the arched door above it. When it was installed they removed 6″ – 12″ of the masonry wall to fit it in and as our new door won’t have such large side windows we needed to rebuild the wall.

You can see from the picture below that the right side of the lower door aligns with the above door, but the left side doesn’t, hence why we are fixing this. New door will be 3″ wider.

1
2
3

[Show slideshow]

First step was to drill the existing wall and epoxy in a bunch of fiber glass rebar to help tie in the new section. This was followed by attaching a piece 2×12″ of pressure treated wood which will form part of the new frame. Into the 2×12″ I screwed in large anchor screws so when the mortar sets the 2×12″ will be fully secured.

2
1
4
3

[Show slideshow]

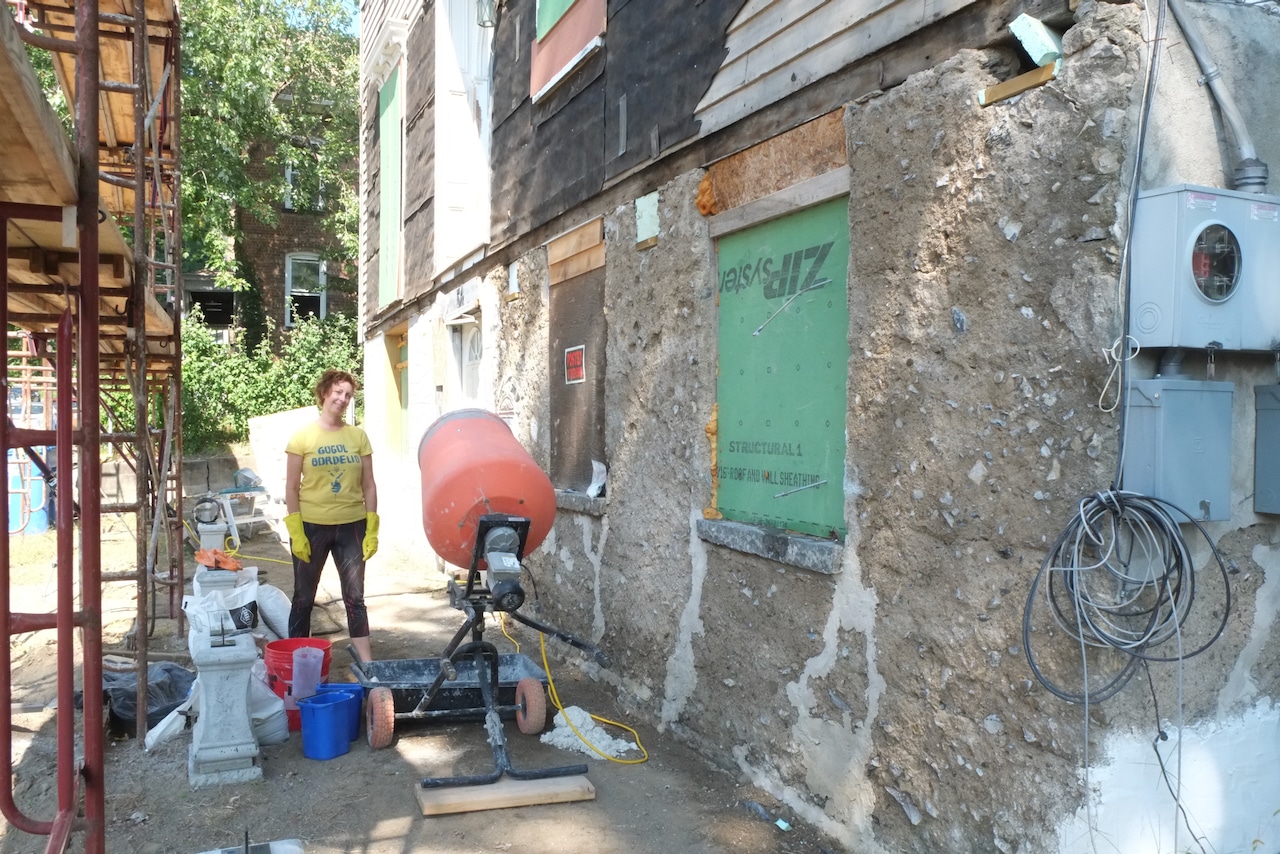

This weekend Aimee was in NYC so I started mixing the lime mortar on Saturday morning. I was on my third mix when I noticed smoke coming from the electric motor on the mixer. I switched it off immediately and basically had to stop work. In the evening I started looking for a new mixer, the box stores sold the mixer I was after but it would take a week or so to get delivered and I wanted the mixer tomorrow, so my search turned to second hand mixers on Marketplace and Craigslist.

There was nothing decent locally so I extended my search, the same mixer that failed (Harbor Freight) turned up in Albany for $150 so that was a contender, then I thought, well Aimee is in NYC and she has the Beast so my search turned south and bingo, a Kushlan mixer had just turned up in Staten Island for $50. I jumped on it and contacted Aimee and by Sunday afternoon we had a great mixer and what a great deal that was, thank you Ilya. This mixer has a slightly higher HP motor and is so quiet compared to the Harbor Freight mixer that Joe has been kindly lending to us.

Screen-Shot-2023-08-27-at-11.17.24-AM
Screen-Shot-2023-08-27-at-11.17.01-AM

[Show slideshow]

I intend to fix the mixer that Joe lent us and a knowegable friend, Oli, suggested that it could have been the starter capacitor that had burnt out and and not the motor so today I ordered a new capacitor and hopefully that will fix the issue, if not it will require a new motor. We never mixed large batches and I think the biggest load we were making was less that a half a bucket full, however we were mixing for a long time. With Portland cement you can probably mix up a batch in a few minutes but lime mortar requires that you mix it for at least 15 minutes, so components probably got hotter.

As we added the shuttering we packed in as much stone as we could to help save on mortar and provide some strength.

There are some expected blemishes but those will all be cleaned up when we add a plaster coat to the walls and then it will be seamless.

2
4

[Show slideshow]

I was expecting to get more done this last weekend, especially as it was a 3 day weekend, alas as usual we didn’t get as much done as expected. I did however remove the left hand panel and pretty much ground back the wall to where it needed to be. Grinding the mortar away is easy, but stone is hard, plus it’s terribly dusting with sand and grit flying everywhere.

4
5

[Show slideshow]

The left hand side is now boarded up and this week I’ll be installing another 2×12 to match the left, with mortar etc.

Posted on

Bedroom floor coating

We’re really not sure what we will do with our floors, possibly wood, tile, linoleum, but what ever we chose the priority is low, so in the meantime we thought we would seal the floors to give them a bit of protection.

Initially I wanted to do a two part epoxy over the whole of the bottom floor, but in the end I decided it wasn’t necessary in rooms that would have flooring added, plus my previous experience with two part epoxy was a bit of a disaster.

I prepped the floor by going over it with a hand held random orbit sander with a diamond pad, followed by a thorough vacuuming. Base coat was “Rust-Oleum 1-part Battleship Gray Satin, Concrete and Garage Floor Paint” followed a day later by a coat of “Rust-Oleum Satin Textured Clear Topcoat“. The topcoat had anti-slip additive so there is a bit of grip so people don’t slip if it gets wet. We’re eventually get around to painting the rest of the floors like this.

Posted on

Sill Joist Finally Finished

It’s taken a while but now it’s done and it’s even had two licks of paint. Overall pretty pleased with the result especially considering the state of it before. I also epoxied and screwed some pressure treated 2×10’s to the back of the beams which will help spread the weight over the wall.

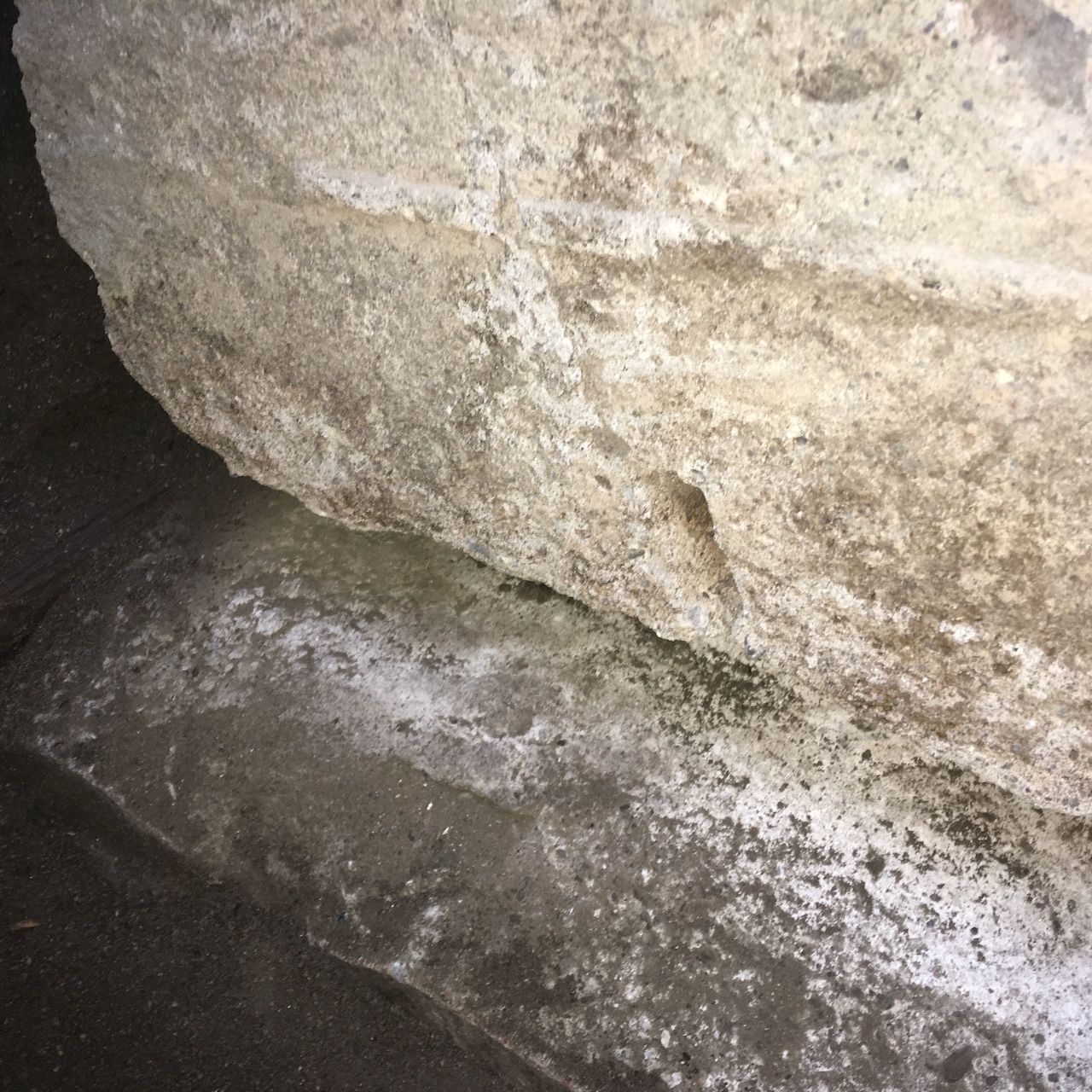

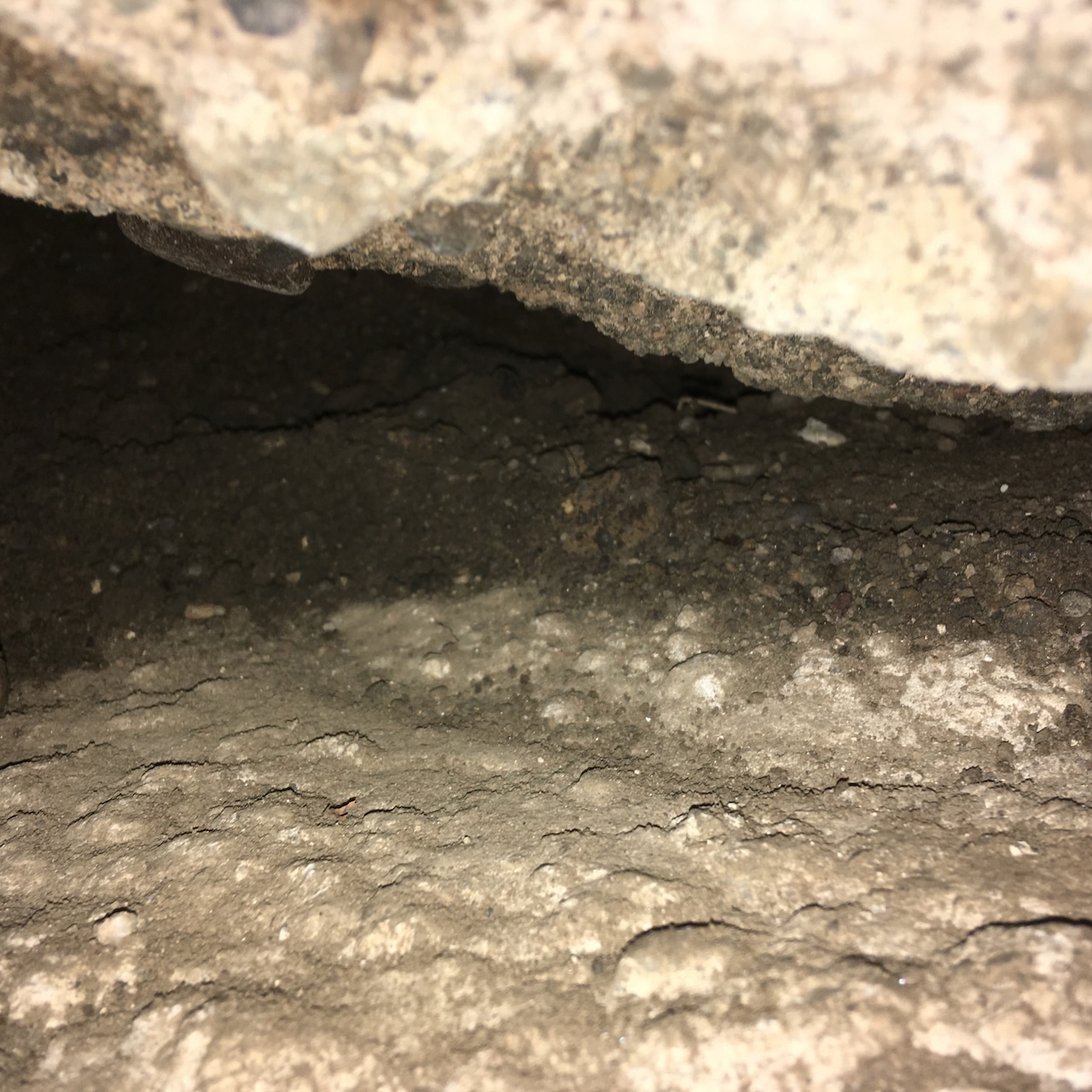

As a reminder this is what it looked like after I had removed any crumbling mortar and rotten wood (note the lack of wooden sill joist which had completely rotted away, leaving corner of house hanging for about 10′),

1-2
1-1

[Show slideshow]

and after I had repaired the wall and ground the top flat.

Imports-3
Imports-7
Imports-6
Imports-4-of-29

[Show slideshow]

My first attempt to replace the beam used pressure treated, didn’t like it so that got replaced by old growth timbers from the house.

Imports-14-of-29
Imports-13-of-29

[Show slideshow]

I didn’t dimension the old growth timber so there were minor gaps etc. but those got filled in with an epoxy paste towards the end.

Imports-29-of-29
9
11

[Show slideshow]

Here you can see the beams reinforced with 2×10 pressure treated. The original beams were placed on the very edge of the wall and some are even over hanging so it was good to spread the weight inwards.

5
13
3

[Show slideshow]

Finally the completed rim joist, with all cracks and gaps filled with West Systems Epoxy and then two coats of exterior paint. Eventually this will all be covered with the sidings. The wall will be parged again as the beam is still over hanging in parts, plus I spilt a fair amount of epoxy on it. Good for another century.

17
16
20

[Show slideshow]

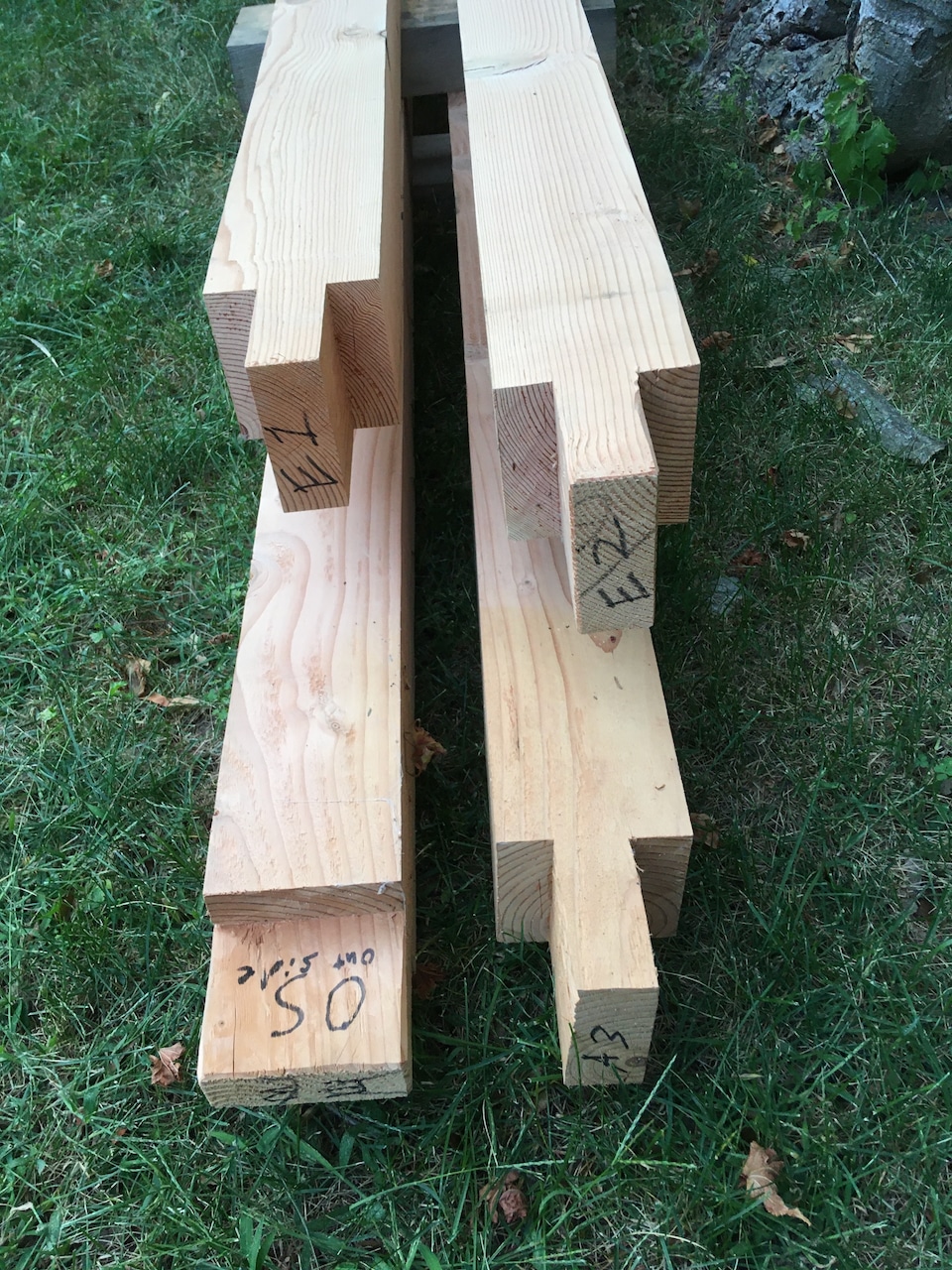

Next project is to replace the rotten floor joists and I’ve already started to cut the joints as can be seen in the following image. I’ll epoxy and bolt everything and possibly that would be enough, but will probably sister in a 10×2 or a LVL beam just to be sure. Tricky cutting these as they are awkward to get at, one down and two to go. Using a sawzall to rough cut and then a trim router with template. Finishing off with a combination of Tenon saw, Japanese saw and hand plane, basically trying everything until I find what works best.

1

[Show slideshow]
Posted on

A Virtuoso Performance…

Whatever …

From the Hudson Valley One

Kingston’s Wilbur and Ponckhockie neighborhoods rise out of obscurity

Kingston’s Wilbur and Ponckhockie neighborhoods have long been overlooked. Insufficient attention has been paid to how improvement and investment could enhance the architectural richness and historic heritage of these Rondout Creek communities.

No more. The City of Kingston has just released a draft architectural and archaeological sensitivity report that surveys each neighborhood’s buildings to determine their suitability for designation in historic districts or as individual landmarks.

The report’s public release in late June marked a first step in getting segments of the two neighborhoods or individual buildings on the National and New York State Registers of Historic Places. Residents have had an opportunity to learn about the initiative this month.

•
•
•

The survey of 246 properties in the Ponckhockie neighborhood revealed an abundance of valuable historic structures, for possible individual listing on the National Register or as contributing properties within a potential historic district. Ponckhockie has a potential historic district of 184 contributing properties, built from circa 1856 to circa 1940. Twenty-one of the 184 may be eligible for individual listing on the National Register. The neighborhood has a high concentration of notable examples of Italianate buildings and early vernacular interpretations of the Federal style, plus a lesser number of examples of Queen Anne, Gothic Revival, and Second Empire styles.

•
•
•

Potential candidates for a historic district include 1 Ponckhockie Street (c. 1870), which the survey calls “the finest and largest brick example of an Italianate house” in Ponckhockie; 9 Grove Street (c. 1880), one of the few high-style Queen Anne houses in the neighborhood and one of two executed in brick; and 54 Gill Street (c. 1869), the former home of David Gill Sr., for whom the street is named and possibly the largest wooden Italianate house in Ponckhockie. Rhoads wrote in his Kingston architectural guide that the owner of 54 Gill accomplished “a virtuoso performance with Italianate paired brackets supporting the projecting eaves ….” Its rehabilitation is being documented online at the Disaster Mansion website.

Not sure what this will mean to us and big shame that we missed the public meeting. Hopefully they will have recorded it.

Personally I think the only reason that Kingston politicians are interested in Wilbur and Ponckhockie is pure financial. These areas have been around for centuries and it seems a coincidence that now Kingston is deemed desirable that these areas are gaining interest.

If any historical branch starts telling us what to do they can shove it up their a#@s. We’re doing the best we can do to restore this grand old house and we need help not barriers or regulation.

Posted on

Mistakes were Made

We decided a while back that utility room floor would remain un-tiled but we’d add a coat of epoxy for protection and to make it easier to clean. This weekend we thought we’d tackle this project so Saturday was spent prepping, I went over the whole floor with a random orbital sander with a diamond pad to scuff up the surface and to remove any dirt, then swept and vacuumed a few times.

Sunday was the application of the epoxy and it didn’t go as well as I had wished. I’m hoping it’s not a disaster, but we’ll see. Main issue is that the epoxy still hadn’t cured after 24 hours and was sticky in parts. 48 hours later it did seem a little less sticky. This epoxy should have cured in about 6 hours.

So what went wrong, well lots of things really and in order of most severe to least:

  • I usually weigh my resin and hardener on a gram scale† to get the correct ratio, but this time I used the dispensing pumps which should supply the resin in the correct ratio. I’m using West Systems which has a resin to hardener ration of 5:1. One press of each pumps should deliver that ratio and to be fair the instructions do tell you to check this which I didn’t.
  • Didn’t tighten the screw caps on the pumps and one of them came apart, fixable but I had to guess how much resin was dispensed whilst trying to fix it.
  • I should have mixed the resins in larger batches, using a drill/paddle mixer. This would have helped in the color matching as I was tinting each batch.
  • I probably should have used some sort of primer as the porous concrete produced loads of bubbles.
  • I should have mixed downstairs so I didn’t have to carry everything down the ladder.
  • I didn’t calculate the the correct amount of resin for the job so I had to leave it incomplete. I did manage at least to cover the whole floor but half of this was a very thin coat and you can see the concrete through it.

So what’s next? I’m hoping the epoxy will cure in time and if not the un-cured portions will have to be removed. If it does cure then I’ll go over it again with my diamond pad and knock down all the air bubbles and the re-coat and this time I will mix the whole gallon of resin in one go.

† I did have my scales at hand but they only go up to 500g and I was mixing more than that until the end when the resin was running low and then I used the scales, so at least some of it cured correctly.

Posted on

Be careful around all tools

This is the damage a bog standard cordless drill can do. I was drilling in an awkward spot and my glove must have touched the drill bit, got caught in it and ripped the finger clean off. I didn’t react fast enough so it was probably a second before I had the sense to take my finger off the trigger. Finger a little bruised but fine the next day.

Out of all of our power tools I wasn’t expecting this. I’ll be more careful next time.

1

[Show slideshow]
Posted on

Getting sick of people taking liberties with our poor property

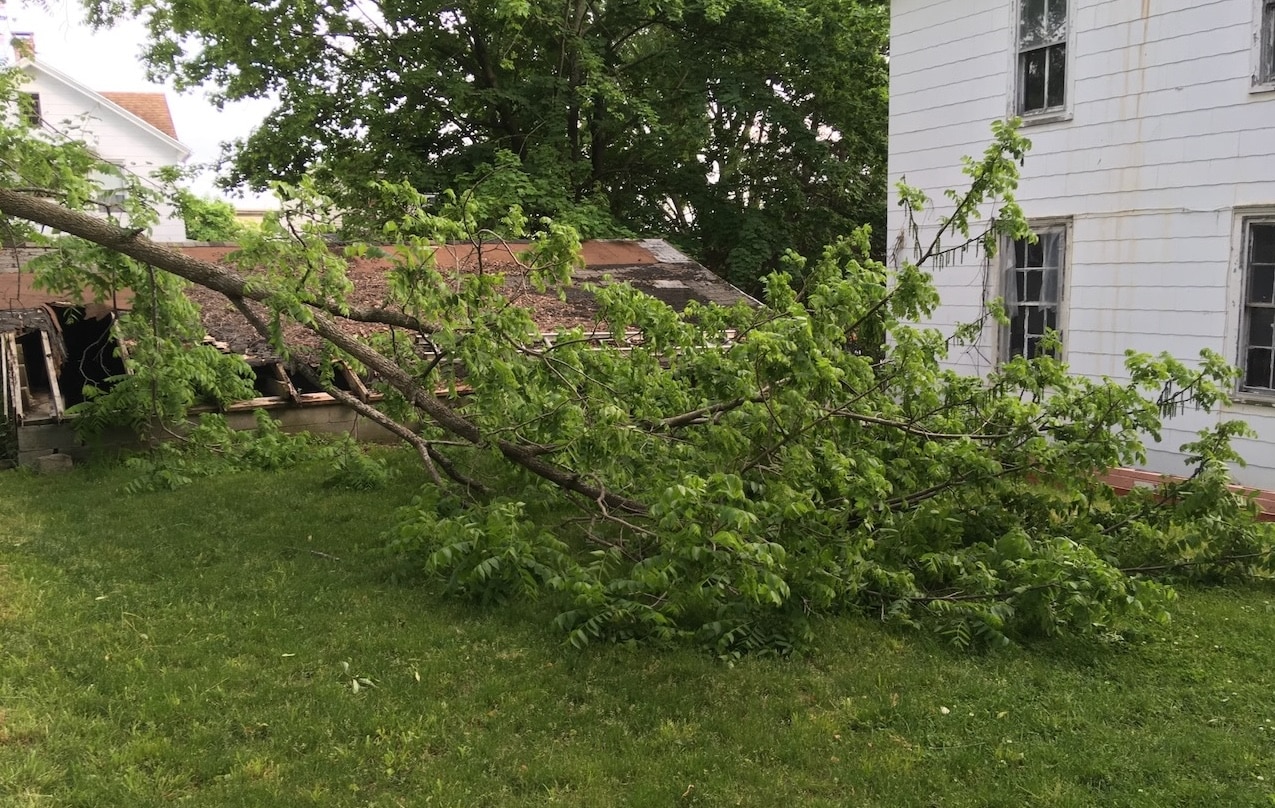

Turned up on last Friday to find this mess on our side lawn. Viburnums took a big hit as well as some of our other plants. The chimney had been leaning badly for some time so it wasn’t surprising. For the roofers it was a bit of a shock and I’m glad no one was hurt.

So what I’m upset about, ignoring the chimney, is the fact that they thought they could treat our unoccupied house like shit. If we had been living there, they would have asked our permission, put tarps down over our plants, shrubs etc. – I’ve seen them do it at our neighbours house. They did do a half decent job cleaning up but it will take another 30 minutes from one of us to pick up all the smaller bits they missed.

2
3
1

[Show slideshow]

To add insult to injury our good neighbour Mama Dot said they were clearing out the house contents (house is owned by the bank and has been empty for many years so we now that the bank maybe getting ready to sell it) by throwing the contents out onto our lovely lawn. They did clean up but that’s taking liberties.

Made me want to watch the film, I Don’t Feel at Home in This World Anymore which I highly recommend. One of Aimee’s friends plays the villain.
