One of our plans this winter is to prep the ground floor for a concrete pour early next year and for that I want to address any footing issues as once the pour is done there is no easy way to fix such issues.

This weekend Aimee is at the Wooden Boat School attending the “Build Your Own Adirondack Chair” woodworking course, so look out for some fine Adirondack chairs appearing around DM. The class started at 9am so we both managed an early start this weekend.

As an aside a brief history of the chair (see The History of the Adirondack Chair for more info).

The Adirondack chair originally built by Thomas Lee in Westport, New York (1903), which lies in the Adirondack Mountains. Thomas came up with the design for his summer home in the Adirondacks for seating for his family. His first design was called the ‘Westport plank chair’. Thomas offered the design to a friend (Harry Bunnell) who saw the potential in selling this design to the greater Westport summer residents. The first commercial Westport chairs were manufactured in hemlock plank – painted in green or medium dark brown. He signed every chair sold.

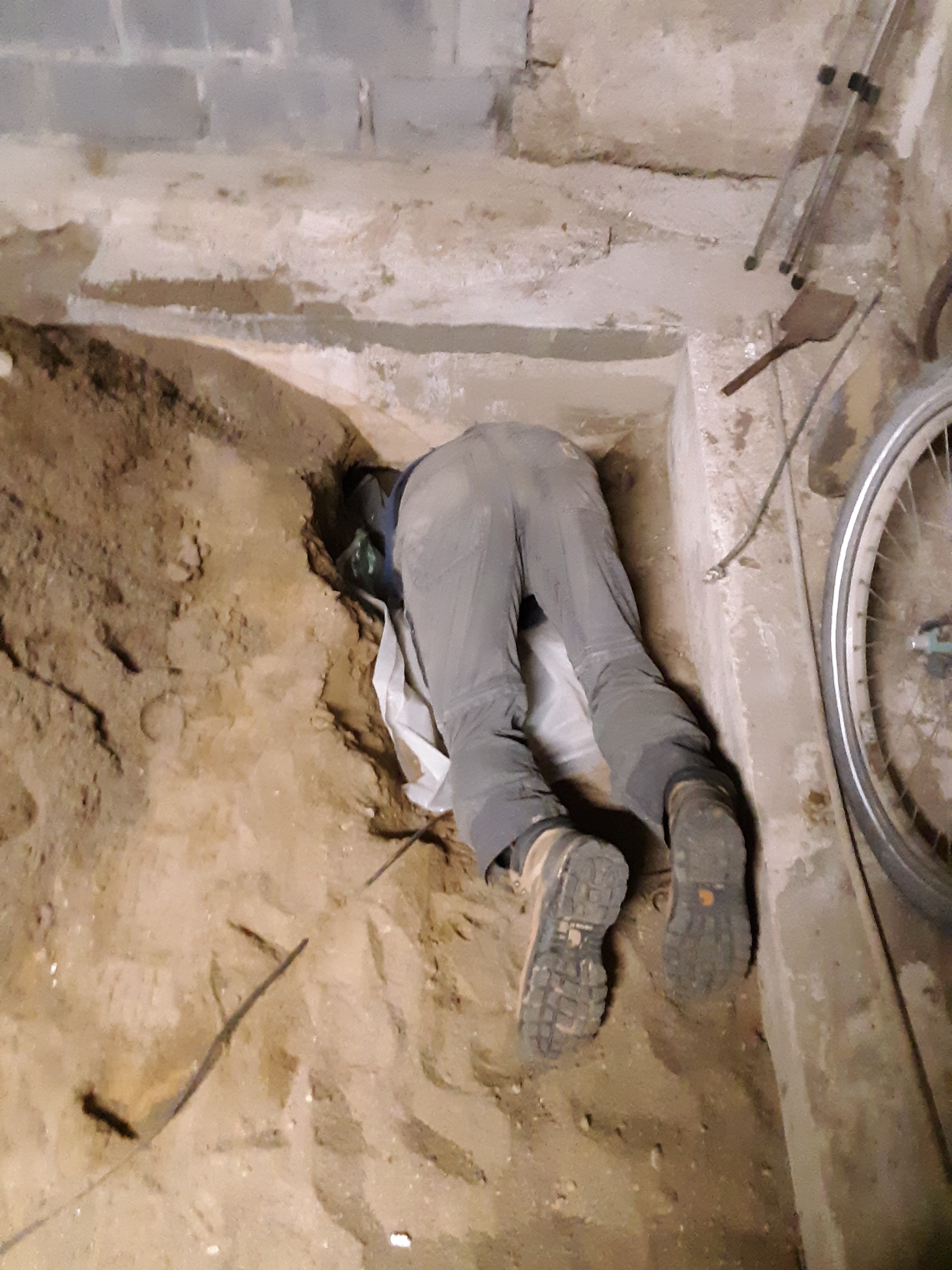

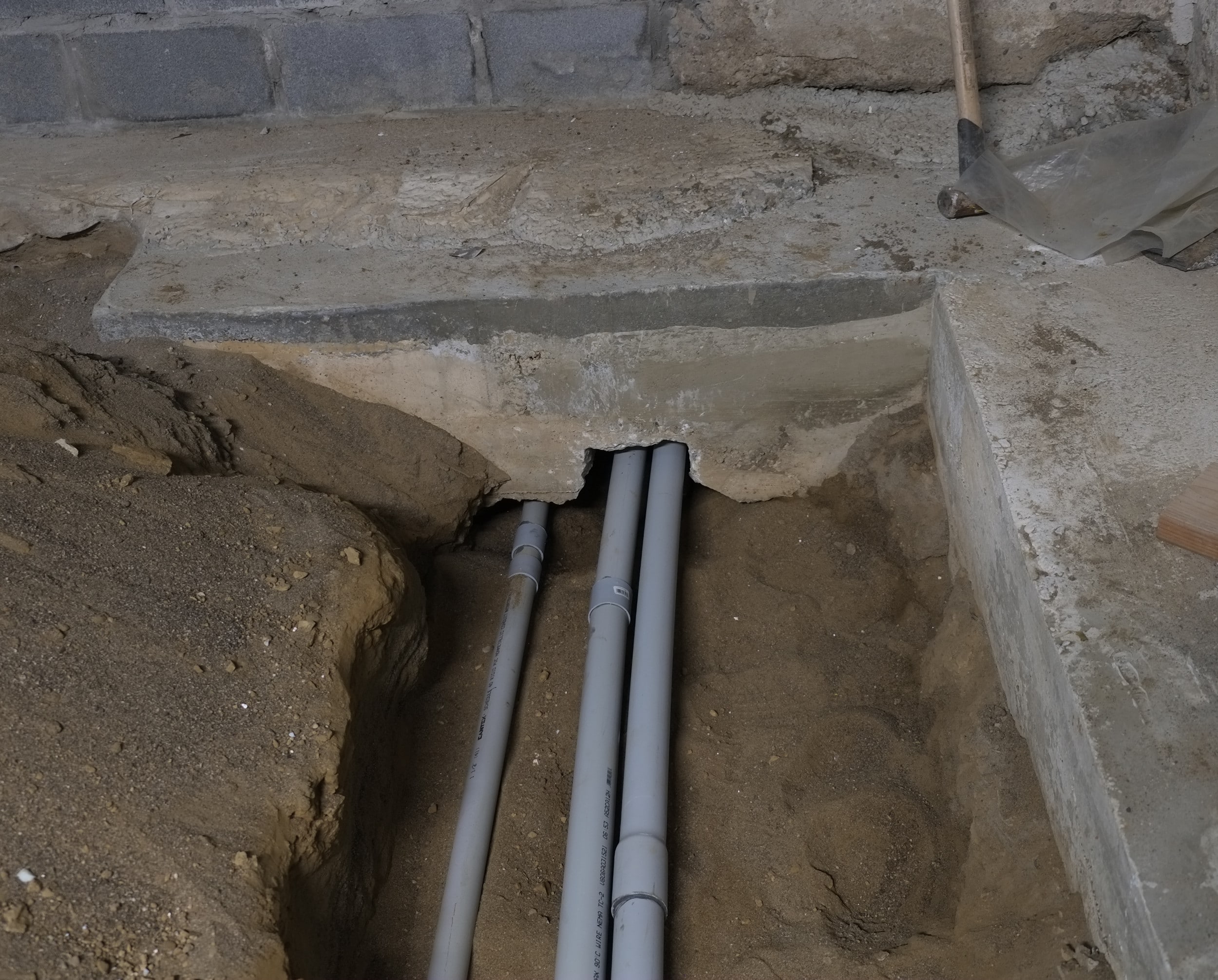

As you can see from the pictures we have a 4′ – 5′ section where the footings aren’t as substantial as I’d like them. Job is pretty straight forward, dig under the existing footing, clean them of dirt and sand, set up the forms, insert rebar into pre-drilled holes and start mixing. We prepped a bit last night so the job today is just mixing the concrete. I did add a kettle of boiling water to each mix to help the cure and when finished I draped a plastic sheet over the concrete and left a fan heater running overnight to keep the temperature up.

[Show slideshow]

I also underpinned the front door section and when that has cured I’ll do a similar underpinning on the right hand side – for this I made the form out of spare foam, which will be left in place.

When I returned on Sunday, I found the plastic sheet had been removed and someone had tagged it, the cheek!!! The only Chris I know that reads these posts is my good friend Chris Williams from Dinas who probably holds the Guinness book of records for the most ‘O’ levels in maths, but that’s another story.

[Show slideshow]

… like a tan line but for colder climates, probably…

So the frost line is how deep water will form ice crystals in the soil during periods of freezing and in this area of the Hudson Valley ice will form down to maybe three or four feet. Why this is important is because water expands when frozen and if your footings are above the frost line they will shift and cracks may appear in the above dwelling.

When our right hand wall collapsed it was replaced with a wall with shallow footings. This wasn’t a building error but due to the fact the architect didn’t want to destabilize the front right hand corner wall, which was still standing, by digging a trench in the very sandy soil next to it. To fix the issue of having the footings above the frost line we laid down foam insulation slabs which is part of the building code for Frost-Protected Shallow Foundations.

[Show slideshow]

From the last picture you can see that you lay down a vertical and horizontal insulation. The calculations for how tall and wide the insulation need to be are pretty complicated so in the end I guessed, one foot deep and two foot horizontally. I’m pretty sure that these should be deeper and wider, but considering the house had none of this for over a hundred years it will be better than nothing, plus next year we can fill in all the trenches, making the footings at least 2 – 4′ deep. We can’t fill them until Derrick applies a lime mortar parge to the walls which will happen next summer.

[Show slideshow]

We cut the foam with our track saw, bonding the pieces with an extra strength Gorilla construction glue (based off this review) and now it seems a shame to bury them!!

Where there were gaps between the foam and the footings, due to irregularities in the footings, I sprayed in expanding foam. Once that sets I’ll run some flashing over the foam /concrete bond. Those spray cans of foam don’t go far, they last for about 30 seconds and I think I used 12 cans, still pretty handy.

As you can see by the following weekend the ditches had started to collapse on the insulation, but that’s fine as they will be underground anyway, main thing is that they are in place and sealed with the foam. It was wet today so the flashing will have to wait, possibly to next year.

[Show slideshow]

I could of started this job a few weeks earlier, but I wasn’t sure how deep or wide the insulation had to be and whether digging too deep might destabilize the footings again etc., etc. so I like the fact that I was up against a deadline (winter), so I made some decisions and got on with it. Possibly similar to a scrum sprint.
